AR-15 ''VALIANT'' Carbine Kit

-18% AR-15 ''VALIANT'' Carbine Kit

** THIS KIT DOES NOT INCLUDE LOWER RECEIVER OR MAGAZINE **

** KITS CANNOT BE CHANGED, NO MODIFICATIONS WILL BE ACCEPTED *

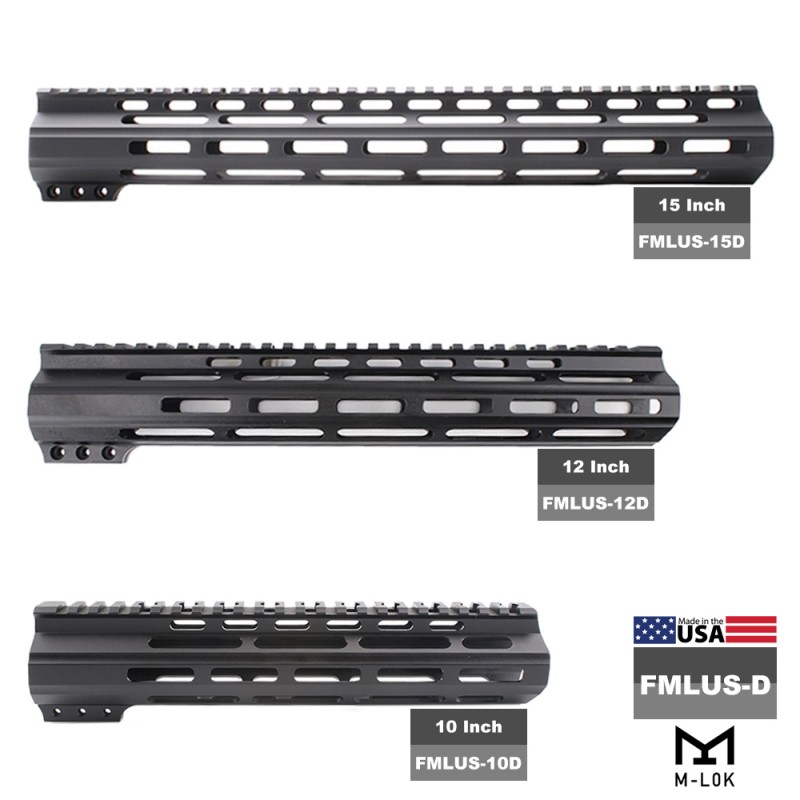

Ultra Lightweight Frame Rail System

  • Material: Aircraft grade 6061-T6 aluminum/locking
  • Length: 10'' 12'' 15”
  • Internal diameter: 1.35” width 1.67 height
  • Keymod location: 3, 6, 9, 12 o’clock location
  •  Top rail has 4 slots or (1.78”) section of pica-tinny on the beginning and end of rail, the rest of the rail is skeleton cut with keymod section for perfect customization.
  • Finish: Black Hard-coat type III Anodized
  • Barrel nut material:  Steel
  • Clamp on design with proprietary screw and locking washer for easy installation
  • Spanner wrench needed to torque barrel nut to spec (not included) and hex wrench
  • This rail does not come with keymod section, sold separately


Barrel: AR-15 5.56 NATO 16" Inch Rifle Barrel 1:8 Twist Parkerized Finish

  • Material: 4150 Heat Treated Steel
  • Chamber: 5.56/.223
  • Length: 16"
  • Twist Rate: 1:8
  • Gas Port: 0.750"
  • Gas System: Carbine
  • Thread Pitch: 1/2x28
  • Feed Ramps: M4
  • Finish: Parkerized
  • MADE IN USA


AR-15 PINE CONE MUZZLE BRAKE

  • Item detail:
  • CNC machined from solid 4150 steel construction
  • Phosphate finish
  • Serrated design with 6 slots
  • 5/8”x24 thread pitch
  • Caliber: .223/5.56
  • Finish: phosphate
  • Weight: 2.0 oz.
  • Length: 2.14


AR-15 Mil-Spec Upper Receiver (Stripped) - Made in U.S.A.

  • High quality and lightweight stripped Upper Receiver
  • Material: Aircraft grade Aluminum
  • Finish: Black Anodized

AR-15 .223/5.56 Bolt Carrier Group- Black Nitride

PROUDLY MADE IN THE USA!

Carrier

  • Machined from 8620 tool steel

  • Heat treated to military specifications

Bolt

  • Machined from 9310 tool steel

  • Heat treated to military specifications

  • Shot Peened

  • Ground to meet military required tolerances

  • MPI (Mag Particle Inspected)

Gas Key

  • Machined from 4140

  • Heat treated to military specifications

Extractor

  • Machined from 4140

  • Heat treated to military specifications

  • Shot peened

Firing Pin

  • Machined from 8640 tool steel

  • Heat treated to military specifications

  • Ground to meet military required tolerances

  • Coated with .0002”-.0003” of hard chrome per MIL-STD-171 1.2.2.2

Cam Pin

  • Machined from 4340

  • Quench and temper heat treat

  • Ground to meet military required tolerances


Charging Handle

  • Body is 6061 T6 Billet Aluminum
  • Latch is 7075 T6
  • Black Type III Hardcoat Anodizing


AR-15 Ejection Port Cover Assembly- American Flag Lasered

  • Ejection Port Cover Door
  • Steel Spring
  • Steel Rod
  • C-Clamp
  • Replaces your missing or damaged Ejection Port Cover on your AR-15 Rifle
  • Laser Etched- American Flag on both Sides

  • Forward Assist

    • Constructed from 4150 Steel
    •  Includes Plunger, Forward Assist Pawl, Retainer pin, and spring

    Gas Block

    Write a review

    Note: HTML is not translated!
        Bad           Good

    DISCLAIMER

    Kit shown assembled to display finished product

    FREE

    Shipping on all orders! All orders ship out within 48h during weekday (excluding items that need to be test-fired)

    RESTRICTION

    This product cannot be shipped out of the U.S.A

    Under CALIFORNIA STATE LAW AB 857: 80% Lower Receivers will not be shipped to CA residents

    ASSEMBLE

    Kit assemble may take up to 10 business days to process
