AR-15 ''SHEEPDOG'' Carbine Kit

-14% AR-15 ''SHEEPDOG'' Carbine Kit

** THIS KIT DOES NOT INCLUDE LOWER RECEIVER OR MAGAZINE **
** ASSEMBLED UPPER & TEST FIRE MAY TAKE UP TO 7-10 BUSINESS DAYS TO PROCESS **

** KITS CANNOT BE CHANGED, NO MODIFICATIONS WILL BE ACCEPTED *

**UNDER CALIFORNIA STATE LAW AB 857: 80% LOWER RECEIVERS WILL NOT BE SHIPPED TO CA RESIDENTS (separate or in kits)**


AR-15 / M4 Quad Rail Hand Guard Oval Ports 6.5"

  •  T6 6061 Aircraft Aluminum
  •     Bead Blast with Type III Anodizing
  •     Precise CNC machining
  •     Mil Spec 1913 Picatinny
  •     2 Piece Drop In Rail System
  •     OVAL Ports

Drop-in Rail Systems guarantee precise fitment with your Mil Spec Standard AR M4 upper receiver


AR-15 Delta Ring Assembly w/ Steel Barrel Nut

  • Aluminum Delta ring with Black Anodized finish.
  • Weld spring with Phosphate finish
  • Snap Ring
  • Heat Treated Steel Barrel nut
  • Comes Fully Assembled
  • Used for installing barrel to upper receiver and retaining drop in style hand guard.


Birdcage Muzzle Brake

SPECS:
Machined steel, matte black. 1.75" (4.4cm) long, 7/8" (2.2cm) O.D. ½”-28 tpi.
Includes crush washer.


AR-15 5.56 NATO 16" Inch Rifle Barrel 1:8 Twist Parkerized Finish Barrel

  • Materiall: 4150 Heat Treated Steel
  • Chamber: 5.56/.223
  • Length: 16"
  • Twist Rate: 1:8
  • Gas Port: 0.750"
  • Gas System: Carbine
  • Thread Pitch: 1/2x28
  • Feed Ramps: M4
  • Finish: Parkerized
  • MADE IN USA



AR-15 Mil-Spec Upper Receiver (Stripped) - Made in U.S.A.

  • High quality and lightweight stripped Upper Receiver
  • Material: Aircraft grade Aluminum
  • Finish: Black Anodized

AR-15 .223/5.56 Bolt Carrier Group- Black Nitride

PROUDLY MADE IN THE USA!

Carrier

  • Machined from 8620 tool steel

  • Heat treated to military specifications

Bolt

  • Machined from 9310 tool steel

  • Heat treated to military specifications

  • Shot Peened

  • Ground to meet military required tolerances

  • MPI (Mag Particle Inspected)

Gas Key

  • Machined from 4140

  • Heat treated to military specifications

Extractor

  • Machined from 4140

  • Heat treated to military specifications

  • Shot peened

Firing Pin

  • Machined from 8640 tool steel

  • Heat treated to military specifications

  • Ground to meet military required tolerances

  • Coated with .0002”-.0003” of hard chrome per MIL-STD-171 1.2.2.2

Cam Pin

  • Machined from 4340

  • Quench and temper heat treat

  • Ground to meet military required tolerances


Charging Handle

  • Body is 6061 T6 Billet Aluminum
  • Latch is 7075 T6
  • Black Type III Hardcoat Anodizing

Dust Cover

  • Dust Cover, Spring, and Rod are constructed from 4150 Steel
  • Black Type III Hardcoat Anodizing

Forward Assist

  • Constructed from 4150 Steel
  •  Includes Plunger, Forward Assist Pawl, Retainer pin, and spring


Gas Block

  • Picatinny rail design allows for installation of accessories.
  • Set screw mounts
  • Constructed of Aluminum
  • Fits: .750 Dia. Barrels
  • Color: Black


Gas Tube

  • AR-15 Picatinny-Style Single Rail Gas Block .750 Dia. AR-15 Picatinny-Style Single Rail Gas Block .750 Dia.
  • Material: Stainless Steel (optimal heat and corrosion resistance)
  • Mil-Spec Dimensions (consistant gas flow)
  • Length: 9.75"
  • Made in the U.S.


AR-15 Standard Lower Receiver Parts Kit-LPK17

Complete Kit Includes:

  •   Standard AR-15 Pistol Grip (Black)
  •     Standard Trigger Guard
  •     Semi Trigger
  •     Semi Hammer
  •     Semi Disconnector
  •     Semi Selector
  •     Bolt Catch Spring
  •     Detent Spring
  •     Bolt Catch Buffer
  •     Take Down Detent
  •     Bolt Catch
  •     Magazine Catch Spring
  •     Bolt Catch Roll Pin
  •     Magazine Catch Button
  •     Magazine Catch
  •     Front Pivot Pin
  •     Hammer Spring
  •     Trigger Spring
  •     Pistol Grip Screw
  •     Pistol Grip Lock Washer
  •     Selector Spring
  •     Detent Selector
  •     Hammer Pin
  •     Trigger Pin
  •     Take Down Pin
  •     Buffer Retainer Pin
  •     Buffer Retainer Spring
  •     Disconnector Spring


AR-15 | AR-10 Collapsible Mil-Spec Carbine Stock

  • Material: Molded from Reinforced Plastic Composite
  • Finish: Matte Black
  • Designed for Mil-Spec 6-Position Buffer Tubes
  • Metal Sling Loop/Attachment installed


AR-15 6 Position Mil Spec Buffer Tube Assembly

This kit fits .223/5.56 Mil-spec Sized stocks
Features:
  • Mil-Spec 6-Postion Receiver Tube
  • Precision Machined from 6061/T6 Aircraft Grade Aluminum
  • Fits most .223/5.56 receivers
  • 3.0 OZ Mil-Spec Buffer
  • Mil-Spec Buffer Spring
  • Steel Castle Nut with 4 slots for castle wrench and hole for older style Wrench
  • Steel End Plate
Kit come with:
  • Mil spec 6 position buffer tube x1
  • Buffer x1
  • Buffer spring x1
  • Castle nut x1
  • End plate x1

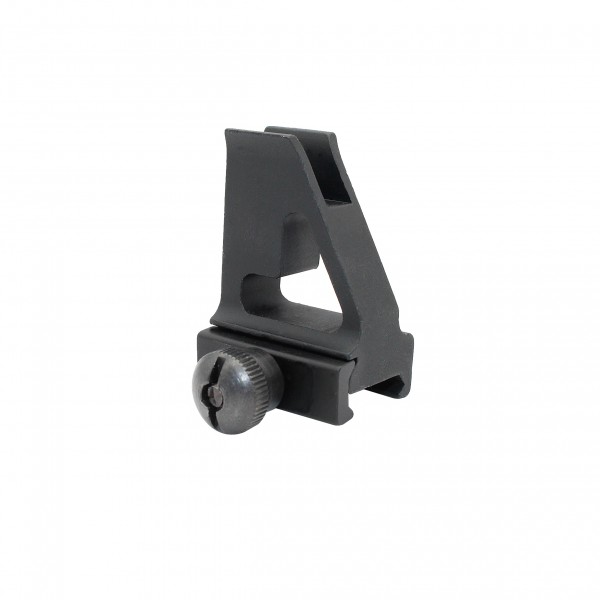

AR15 Mil Spec Front Sight Sight Post .223 5.56 A2 Thumb Nut Lock

FEATURES
  • Picatinny/Weaver-style Rails, Thumb Nut with Locking Retention
  • Designed to Use with Handguard Rails or High Profile Gas Block
  • Precision Elevation Adjustments to Enhance Shooting Accuracy


AR 15 Detachable Carry Handle

  • Material: High Quality Aluminum
  • Color/Finish: Matte Black Finish
  • Length:7"
  •  Weight:9.3 oz


Write a review

Note: HTML is not translated!
    Bad           Good

Disclaimer

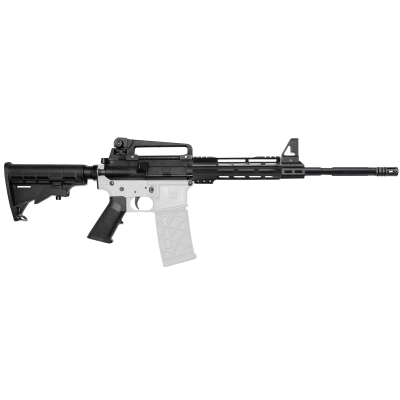

KIT SHOWN ASSEMBLED TO DISPLAY FINISHED PRODUCT
